360 Degrees View Auto Cable Arrangement Borehole Inspection Camera

Name: 360 Degrees View Auto Cable Arrangement Borehole Inspection Camera
Brand: Gold
Price: 1 USD

Wholesale 360 Degrees View Auto Cable Arrangement Borehole Inspection Camera from china suppliers

Brand Name : Gold

Model Number : GYGD

Certification : CE

Place of Origin : Chongqing, China

MOQ : 1

Price : To be negotiated

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100 sets/month

Delivery Time : In 10 days

Packaging Details : Wooden case, less than 1 cbm

Camera Resolution : 850TVL

Screen Display : 1024*768 pixels

Depth Range : 0~2000 meters

Sensor : Sony 1/3 inch CCD, 0.1 Lux

Cable Tensile Strength : 250KG

Pressure : Max 150Mpa

Light : 8pcs LED lights, luminance adjustable

Storage : SD card/U disk

Custom Service : Acceptable for logo, design and etc

Winch Type : Electrical, auto cable arrangment

Contact Now

Products Interview

GYGD Auto Cable Arrangement Borehole Inspection Camera

As we all know borehole inspection camera is very important for borehole damage prevention, maintainance, repair and etc. A good borehole camera should not only record very clear images, but also convenient to use and very easy to operate. Not like the majority of borehole camera on the market, our GYGD series has acheived auto cable arrangement, which can not only extend the work life, but also is labour save and convenient. It concludes all the advantages of a good borehole camera should have, it is more humanized and durable!

Technical Specification

**GYGD Auto Cable Arrangement Borehole Camera Specifications**
Sensor	Sony 1/3 inch CCD, 0.1 Lux
LED Display	*8/12 inch 4:3, 1024768 pixels**
Camera	850TVL, Automatic/Manual Focus, 360 degrees Rotation, Freely Control
Light	8pcs LED Lights, Luminance Adjustable
Depth	0~2000 meters
Storage	SD card/U Disk, Standard 16G SD Card, 32G Optional
Probe	-Panoramic/Rotary
Power	AC 220V 50Hz(DC 12/24V Optional)
Pressure	Max15Mpa
Cable Tensile Strength	250KG

Basic Configuration

No	Item	Unit	Qty	Picture
1	GYGD-IIIS/GYGD-IV(equiped keyboard)	Set	1
2	Rotary/Panoramic Camera	Piece	1
3	Cables	Meters	Pending
10	Auto cable arrangement winch	Set	1

Products Deatils

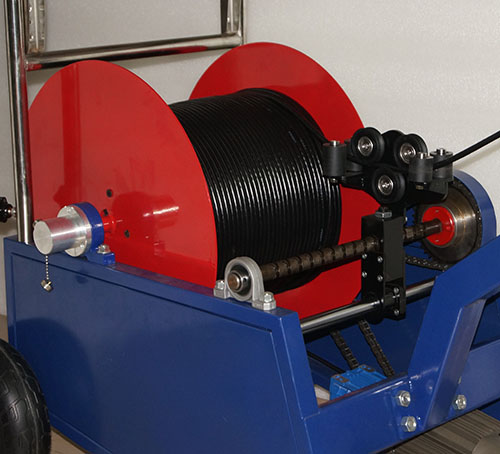

360 Degrees View Auto Cable Arrangement Borehole Inspection Camera

Live-action Pictures

360 Degrees View Auto Cable Arrangement Borehole Inspection Camera
